belt conveyor

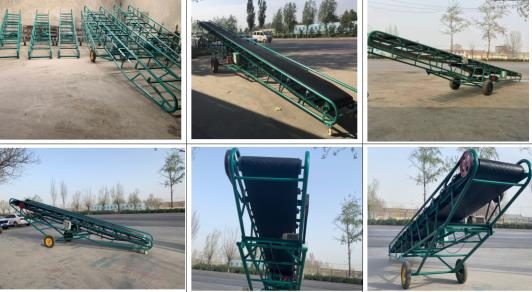

Usage and application:

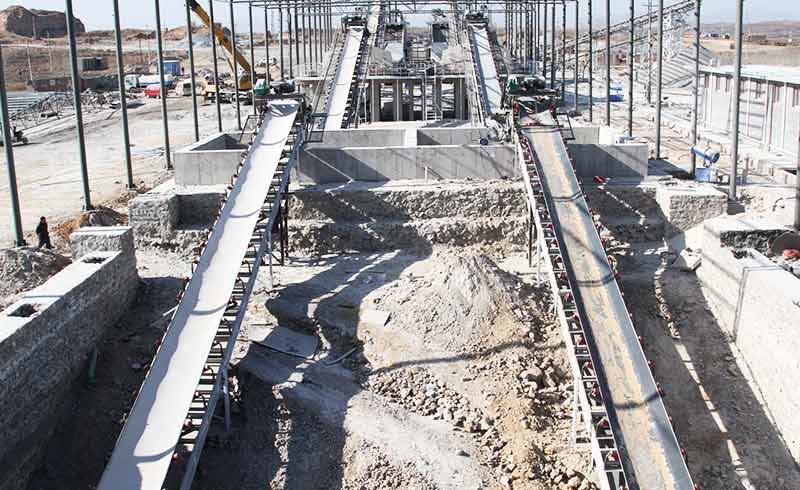

The mobile belt conveyor widely used in mining,gravel field, metallurgy, building materials,chemical industry,mineral processing,coal mining and other industries.It can convey bulk material like coal,cement,sand,cereal etc.And can convey lump material
Working principle:
It uses the belt conveyance to draw and support components and transport materials by way of the moving belt. It utilizes the inner friction and side pressure of loose material to increases the internal pressure from the pulling force in its moving direction produced by the rolling chamber in the adhesive chamber, thus increasing the internal friction. When inclination falls within certain scope, the inward friction force can ensure the stability between layers and create continuous movement. When the internal friction force between the layers is larger than the external force of the adhesive, the roller beneath the adhesive will move along with the material. When the ratio of internal force and external force meets a condition, the material flow is stable.
Feature:
Our Belt Conveyor with such advantages : simple structure; long conveying distance; wide application scope; strong adaptability to materials; high reliability; low energy consumption; high efficiency; low maintenance cost.
Main technical specifications:
|
Belt width(mm) |
Conveying length(m) |
Conveying speed(m/s) |
Conveying amount (t/h) |
||
|
500 |
<=12 |
12-20 |
20-30 |
1.3-1.6 |
78-191 |
|
650 |
<=12 |
12-20 |
20-30 |
1.3-1.6 |
131-323 |
|
800 |
<=6 |
6-15 |
15-30 |
1.3-1.6 |
278-546 |
|
1000 |
<=10 |
10-20 |
20-40 |
1.3-2.0 |
435-853 |
|
1200 |
<=10 |
10-20 |
20-40 |
1.3-2.0 |
655-1284 |
|
1400 |
<=10 |
10-20 |
20-40 |
1.3-2.0 |
893-1745 |
|
1600 |
<=10 |
10-20 |
20-40 |
1.3-2.0 |
1069-2195 |
