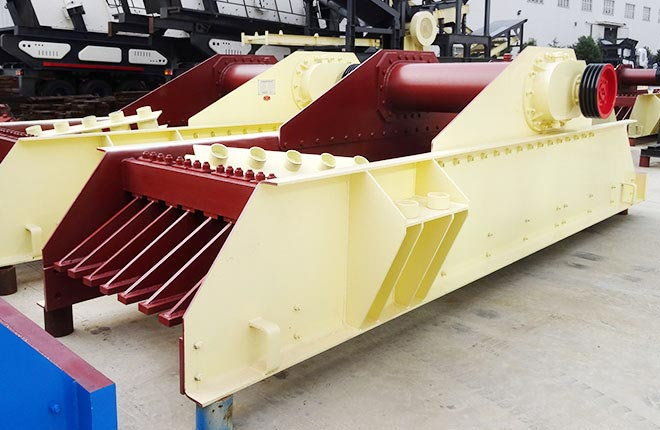

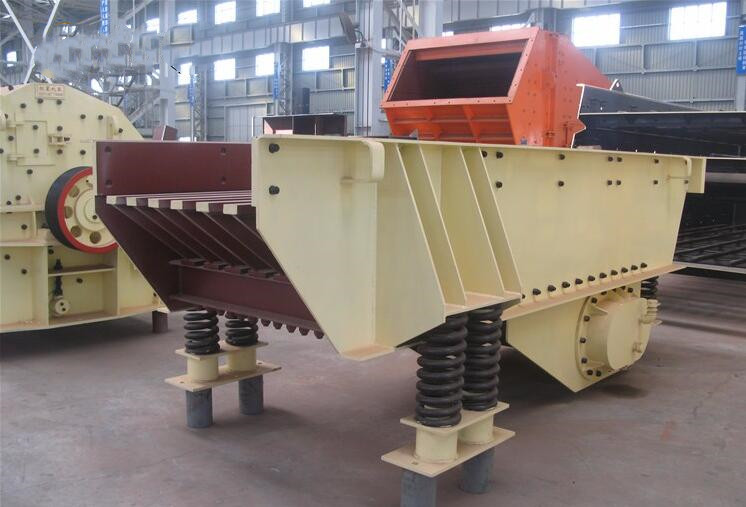

Vibrating feeder

Usage and application:

Vibrating feeder can continuously and evenly feed the crushing equipment and classify the materials, so that it is widely used in the crushing and screening combination plant in ore beneficiation, building material, silicate and chemical industry.

Working principle:

The electromotor drives the eccentric block of the exciter to rotate with high speed through the v-shaped belt. The eccentric block can produce big eccentric force, and the exciting screen box will do circular motion with certain amplitude. The materials on the slant screen will be influenced by the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller than the screen hole will go through the screen, thus realizing classifying.

Features:

(1) stable vibration, reliable operation and long service life;

(2) The excitation force and materials quantity moving in the feeder can be adjusted conveniently and easily.

(3) The vibrating motor, as the excitation source, has low noise, small power consumption, good adjusting performance and without material splash.

(4) Simple structure, reliable running, convenient installation, light weight, small size, easy maintenance, and the enclosed type can prevent dust pollution.

Main technical specifications:
