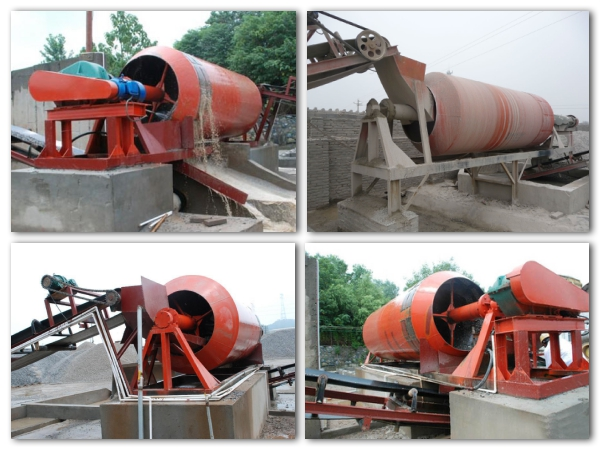

Rotary drum stone washer

Usage and application:

Stone washer ,also called stone washing machine is mainly used to remove impurities (such as dust) of sand products. Because it is mostly washed with water, it is called stone washing machine. It is widely used in the desliming and screening operations of a large amount of sand and gravel used in construction sites, sand and gravel plants, prefabrication plants and hydropower sites; it can also be used in ore sorting operations.

[Adapted materials] River pebbles, pebbles, limestone, granite, quartz sand, natural sand, machine sand, river sand, etc.

Working principle:

The aggregate containing mud and stone powder is fed in from the feed port and enters the rotating drum. The wear-resistant rubber lining board with a certain angle installed in the cleaning drum is continuously lifted and dropped, moving from the feeding end to the discharging end. During the process, it circulates many times and is rinsed and washed by forward or reverse washing water. The cleaned aggregate is sieved and dewatered by the discharge end cylinder screen and then discharged. The wastewater containing sludge flows out through the perforated baffle at the discharge or feed end.

Features:

1. Reasonable structure, easy maintenance, high output, low energy consumption, high cleaning rate.

2. Long rotary drum of the scrubber retains material for longer, more vigorous washing for complete separation

3. Body is armor plated and the spiral axle is made of cast iron for durability.

4. Drive loads absorbed within the drive frame and pivoting drive frame design.

5. Efficient, wearing, and of good hydrate effect, steady final product.

6. Powder quality is easy to control, and fine adjustment is convenient, flexible and reliable.

7. The inverter control technology makes the operation more concise.

Technical parameter:
