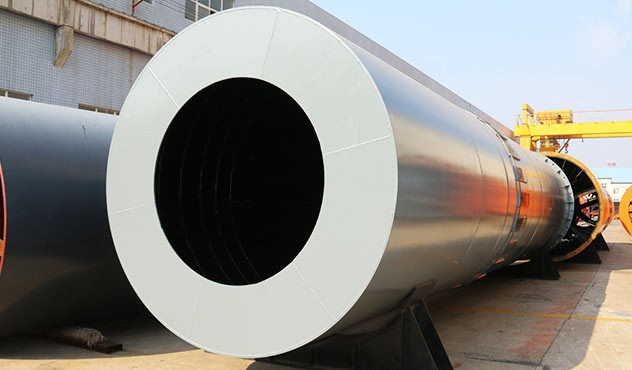

cement dryer
Usage and application :
Cement dryer is mainly for drying dry sand, slag, clay stone, slag,etc in cement plant .
Working principle:
Materials are sent to hopper of rotary drum dryer by belt conveyor or bucket elevator.The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.
Features:
High heat efficiency ,Short drying period
Large capacity, wide application ranges, small flow resistance, large operation ranges, convenient operation.
Technical specification:
|
Spec./m (Dia.×Length) |
Shell Cubage (m³) |
Capacity (t/h) |
Installation Obliquity (%) |
Highest Inlet Air Temperature (℃) |
Main Motor (kw) |
Weight (t) |
|
Φ1.2×8.0 |
9.0 |
1.9～2.4 |
3～5 |
700～800 |
7.5 |
9 |
|
Φ1.2×10 |
11.3 |
2.4～3.0 |
3～5 |
700～800 |
7.5 |
11 |
|
Φ1.5×12 |
21.2 |
4.5～5.7 |
3～5 |
700～800 |
15 |
18.5 |
|
Φ1.5×14 |
24.7 |
5.3～6.6 |
3～5 |
700～800 |
15 |
19.7 |
|
Φ1.5×15 |
26.5 |
5.7～7.1 |
3～5 |
700～800 |
15 |
20.5 |
|
Φ1.8×12 |
30.5 |
6.5～8.1 |
3～5 |
700～800 |
18.5 |
21.5 |
|
Φ1.8×14 |
35.6 |
7.6～9.5 |
3～5 |
700～800 |
18.5 |
23 |
|
Φ2.2×12 |
45.6 |
9.7～12.2 |
3～5 |
700～800 |
22 |
33.5 |
|
Φ2.2×14 |
53.2 |
11.4～14.2 |
3～5 |
700～800 |
22 |
36 |
|
Φ2.2×16 |
60.8 |
13.0～16.2 |
3～5 |
700～800 |
22 |
38 |
|
Φ2.4×14 |
63.3 |
13.5～16.9 |
3～5 |
700～800 |
37 |
45 |
|
Φ2.4×18 |
81.4 |
17.4～21.7 |
3～5 |
700～800 |
37 |
49 |
|
Φ2.4×20 |
90.4 |
19.3～24.1 |
3～5 |
700～800 |
45 |
54 |
|
Φ2.4×22 |
99.5 |
21.2～26.5 |
3～5 |
700～800 |
45 |
58 |
|
Φ2.6×24 |
127.4 |
27.2～34.0 |
3～5 |
700～800 |
55 |
73 |
|
Φ3.0×20 |
141.3 |
30.1～37.7 |
3～5 |
700～800 |
75 |
85 |
|
Φ3.0×25 |
176.6 |
37.7～47.1 |
3～5 |
700～800 |
75 |
95 |
|
Φ3.2×25 |
201 |
42.9～53.6 |
3～5 |
700～800 |
90 |
110 |
|
Φ3.6×28 |
285 |
60.8～76.0 |
3～5 |
700～800 |
160 |
135 |
