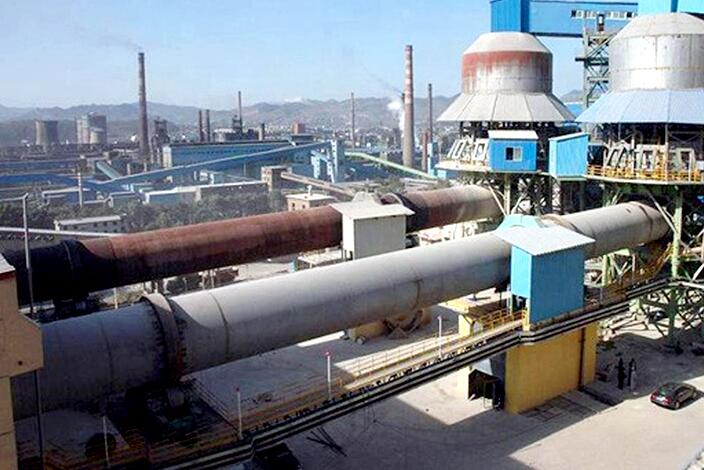

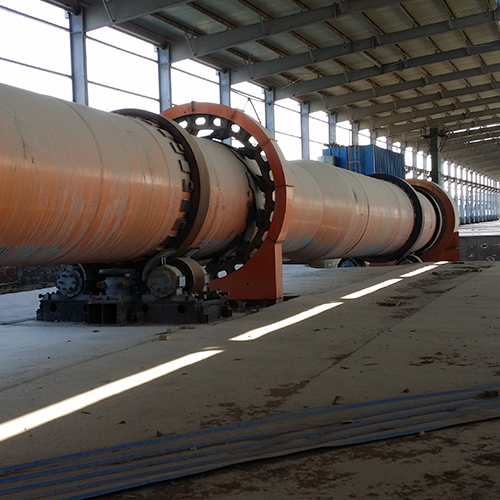

kaolin rotary kiln

Usage and applicatioin :

Kaolin has the advantages of high whiteness, softness, and easy dispersion and suspension in water. And has good plasticity and high adhesion, excellent electrical insulation properties, good acid solubility, very low cation exchange capacity, better fire resistance and other physical and chemical properties. Therefore, the development of kaolin has increased accordingly.  and the kaolin rotary kiln is the main equipment of kaolin.

Working principle:

When the kaolin rotary kiln starts to work, the kaolin raw material enters the cylinder through the preheater from the end of the kiln. Due to the inclined installation of the cylinder and the slow rotation, the kaolin material produces a roll in the circumferential direction and from the axial direction. A compound movement in which the higher end moves toward the lower end. The kaolin material is decomposed and fired in the kiln, and the clinker is discharged from the kiln head (lower end) and enters the cooler.

Features:

Kaolin rotary kiln has simple external structure and reasonable internal structure, which is easy to install, operate and maintain

The kiln cylinder runs very uniformly, with low heat energy loss and low failure rate

The sealing inside the kiln is reasonable, which can reduce dust spillage and dust pollution

The equipment is equipped with an automatic cooling device, which can improve the recycling rate of materials and increase the output

Technical specifications:

:Specificatios Model
(mm)

The size of the kiln

Yield
(t/h)

Speed
(r/min)

Electrical power (kw)

Weight
(t)

Diameter
(mm)

Length
(mm)

Gradient
(%)

φ1.4×33

1.4

33

3

0.9-1.3

0.39-3.96

18.5

47.5

φ1.6×36

1.6

36

4

1.2-1.9

0.26-2.63

22

52

φ1.8×45

1.8

45

4

1.9-2.4

0.16-1.62

30

78.2

φ1.9×39

1.9

39

4

1.65-3

0.29-2.93

30

77.59

φ2.0×40

2

40

3

2.5-4

0.23-2.26

37

119.1

φ2.2×45

2.2

45

3.5

3.4-5.4

0.21-2.44

45

128.3

φ2.5×40

2.5

40

3.5

9.0-10.5

0.44-2.44

55

149.61

φ2.5×50

2.5

50

3

6.25-7.4

0.62-1.86

55

187.37

φ2.5×54

2.5

54

3.5

6.9-8.5

0.48-1.45

55

196.29

φ2.7×42

2.7

42

3.5

10.0-11.0

0.10-1.52

55

198.5

φ2.8×44

2.8

44

3.5

12.5-13.5

0.437-2.18

55

201.58

φ3.0×45

3

45

3.5

12.8-14.5

0.5-2.47

75

210.94

φ3.0×48

3

48

3.5

25.6-29.3

0.6-3.48

100

237

φ3.0×60

3

60

3.5

12.3-14.1

0.3-2

100

310

φ3.2×50

3.2

50

4

40.5-42

0.6-3

125

278
