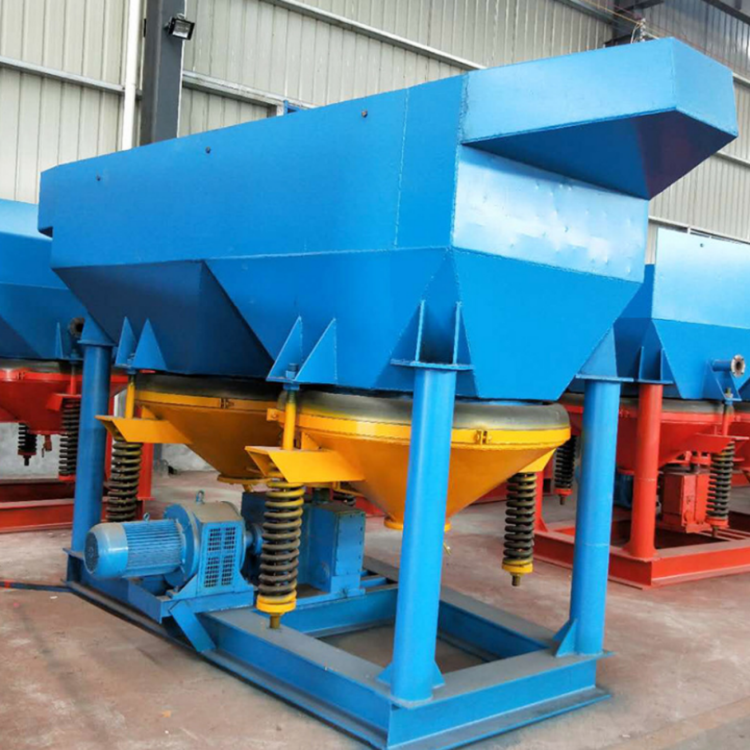

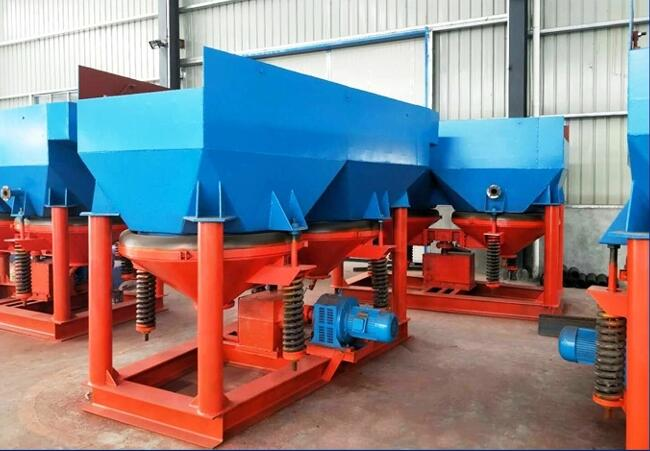

jigger machine
Usage and application :
jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layertheory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separatoris one of the ideal devices in energy-saving gravity separation.
Working principle:
When processing the open-pit mines, the saw-tooth wave jigger is a key machine with the principle of gravity separation. Its pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.
Features:
1.High capacity, high concentration ratio and high recovery ratio.
2.Fabricated with highest quality material
3.Easy to install, operate and maintain
4.Water conservation ,Saving water 30-40% than ordinary jig.
5.The pulsation speed very easy adjusted by regulator.
6.Suitable to separate out big and small size heavy minerals.
Techncial specifications:
|
|
Jig Area (M2) |
Stroke (R/Min) |
Feeding size (mm) |
Hutch Water ( T/H) |
Pressure Water (kg/cm2) |
Capacity (T/H) |
Power (KW) |
Overall dimensions (mm) |
Weight (T) |
|
JT0.57-1 |
0.57 |
60-160 |
＜6 |
1-2 |
≥0.3 |
1-2.5 |
1.5 |
1560×820×1550 |
0.612 |
|
JT1-1 |
1.04 |
60-160 |
＜10 |
2-3 |
≥0.3 |
4-10 |
2.2 |
1322×1190×1915 |
0.9 |
|
JT2-2 |
2.28 |
60-160 |
＜10 |
2-4 |
≥0.3 |
8-15 |
3 |
3225×1550×2150 |
1.637 |
|
JT4-2 |
4 |
50-125 |
＜10 |
4-8 |
≥0.1 |
8-16 |
7.5 |
4240×1990×2750 |
4.6 |
|
JT4-2A |
4 |
50-125 |
＜10 |
4-8 |
≥0.1 |
8-16 |
8 |
4240×1990×2750 |
4.6 |
|
JT5-2 |
4.86 |
80-120 |
＜10 |
4-10 |
≥0.1 |
10-20 |
7.5 |
3940×2006×2580 |
4.6 |
