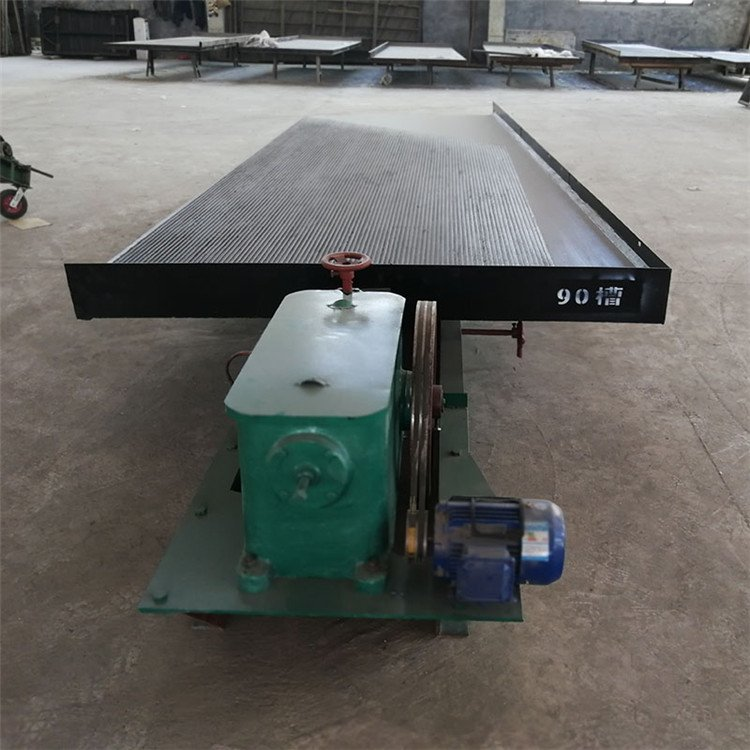

shaking table

Usage and application :

The shaking table is a gravity dressing machine used for separating fine particles. They are mainly used for various metals such as gold, silver, zinc, tungsten, iron, manganese, lead and coal and heavy metal materials. It is suitable for different grades of materials such as 2-0.5mm, coarse sand of 0.5-0.074mm, fine sand, and slime of 0.074mm. When the beneficiation shaker processes tungsten or tin metal ore materials, the effective recovery range of the equipment is 2-0.22 mm.

Working principle:

Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced

Features:

1. High concentrating ratio, high beneficiation efficiency.

2. Simple operation. It can realize the final concentrating and final tailing only for once.

3. Compared with traditional technology, without reagent.

4.Low energy consumption; high performance.

Technical specifications:
