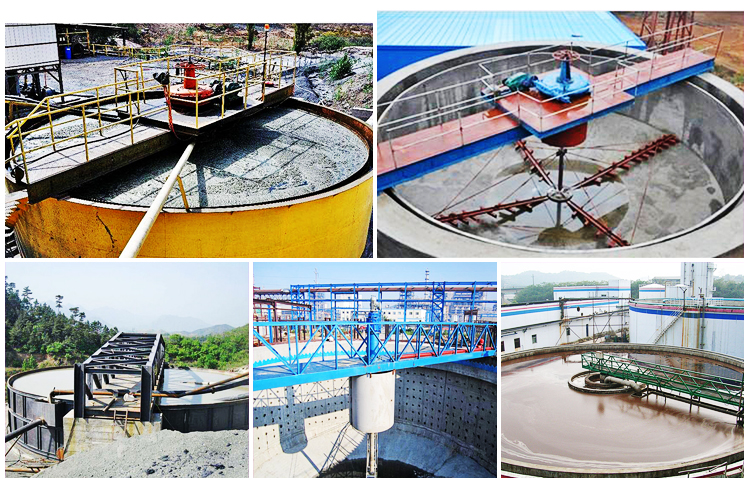

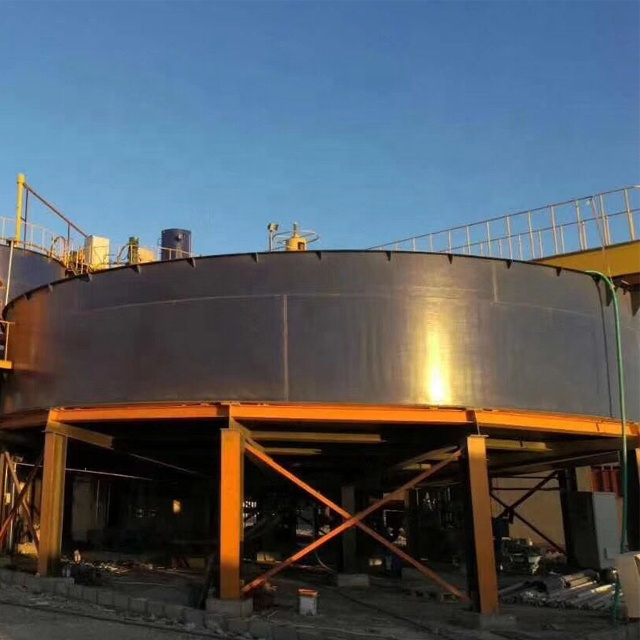

high efficiency thickener

Usage and application

The high efficiency thickener produced by our company is suitable for removing the water in the ore concentrate and the tailings in the ore beneficiation plant and it can concentrate the ore pulp from 20-30% to about 40-70%. This high efficiency thickener is widely used in metallurgy, chemistry, coal, non-metal ore beneficiation, and environmental protection industry.

Working principle:

Thickener is a solid - liquid separation equipment based on gravity sedimentation.

The pulp containing solid weight of 10%~20% can be concentrated into the bottom-flow pulp containing solid content of 45%~55% by gravity sedimentation, and the thickened bottom-flow pulp can be discharged from the bottom flow port of the thickener by means of the harrow installed in the thickener for slow operation.The upper part produces a cleaner clarifying liquid (overflow), which is discharged from the annular chute at the top.

Features:

1. Add the flocculating agent to increase the grain size of the falling solid particles to accelerate the falling process.

2. Install an inclined board to shorten the falling distance of the ore particles and increase the falling area.

3. Perform the functions of flocculating, filtering, concentrating and improving the processing quantity.

4. High-efficiency concentrator is equipped with a comprehensive automatic control device.

Technical specifications:
